24124 Bearing

24124 spherical roller bearing: 120 × 200 × 80 mm, with detailed ratings, speed references, mounting data, and calculation factors.

Model: 24124
Series: 24100
Enquiry: Suffix + bore type

24124 Bearing Overview

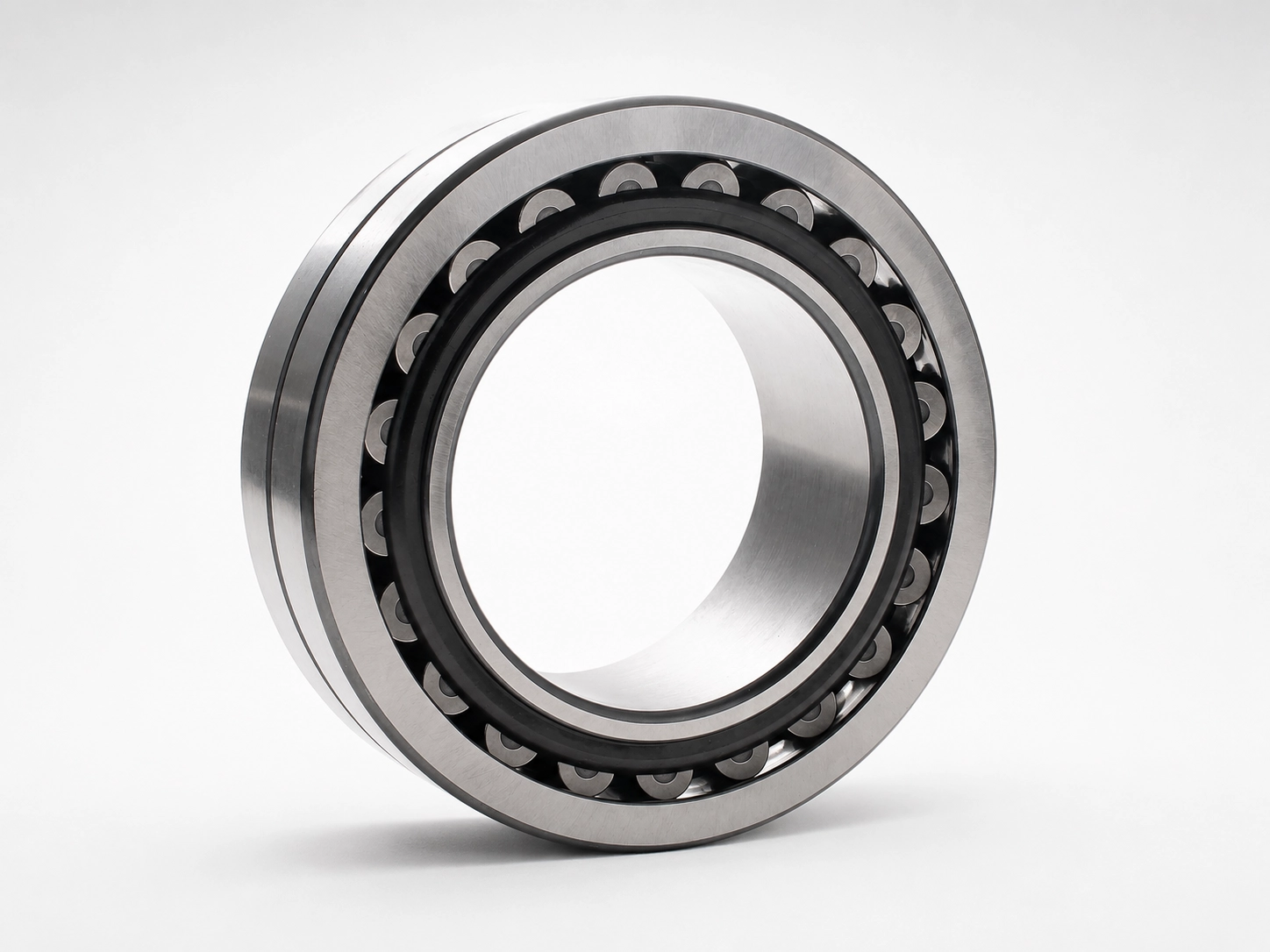

24124 is a 24100 series spherical roller bearing with 120 mm bore, 200 mm outside diameter, and 80 mm width. Match the complete suffix, bore, clearance, cage, lubrication features, and operating conditions before ordering.

Confirm the full model, suffix, clearance, bore type, application, and quantity before ordering or assessing a replacement.

Detailed Model Data

24124 Reference Specifications

Use these values to identify the bearing and prepare a quotation. Final supplied values depend on the selected design, full suffix, internal clearance, and agreed product configuration.

Bore d
120 mm
Outside diameter D
200 mm
Width B
80 mm

Load, Speed, and Weight Reference

Design reference Dynamic C Static C0 Oil speed Grease speed Thermal reference Mass
EJ 778 kN 1080 kN 1,700 rpm 1,600 rpm 2,660 rpm 10 kg

Mounting and Calculation Reference

Design r max. Shaft da Housing Da e Y1 Y2 Y0 Cg
EJ 2 mm 135 mm 182 mm 0.36 1.86 2.77 1.82 0.075

Configuration and Use Notes

  • Tapered-bore versions may use K after the bearing number. Availability and suffix conventions must be confirmed for the selected manufacturer.
  • Oil, grease, and thermal reference speeds are design references, not universal application limits. Fit, clearance, load, temperature, lubrication, and surrounding components can reduce the permissible operating speed.
  • Clearance classes and cage suffixes vary by manufacturer. Confirm the complete marking rather than selecting from the base model alone.
  • Ratings, speeds, cage references, mounting data, and calculation factors are reference values for the listed design. Manufacturers and internal designs can differ even when boundary dimensions match. Confirm the selected brand, full suffix, clearance, and application before ordering.
Download CSV Download PDF

What to Confirm Before Ordering

  • Match the complete 24124 designation, including every suffix and bore marking.
  • Confirm clearance, cage, lubrication features, shaft and housing fits, shoulders, fillets, speed, load, and temperature.
  • Include the bearing position, current model or photo, quantity, destination, and required inspection or compliance files.

Common Applications

  • Paper mill equipment
  • Steel plant equipment
  • Industrial gearboxes
  • Large-shaft machinery
