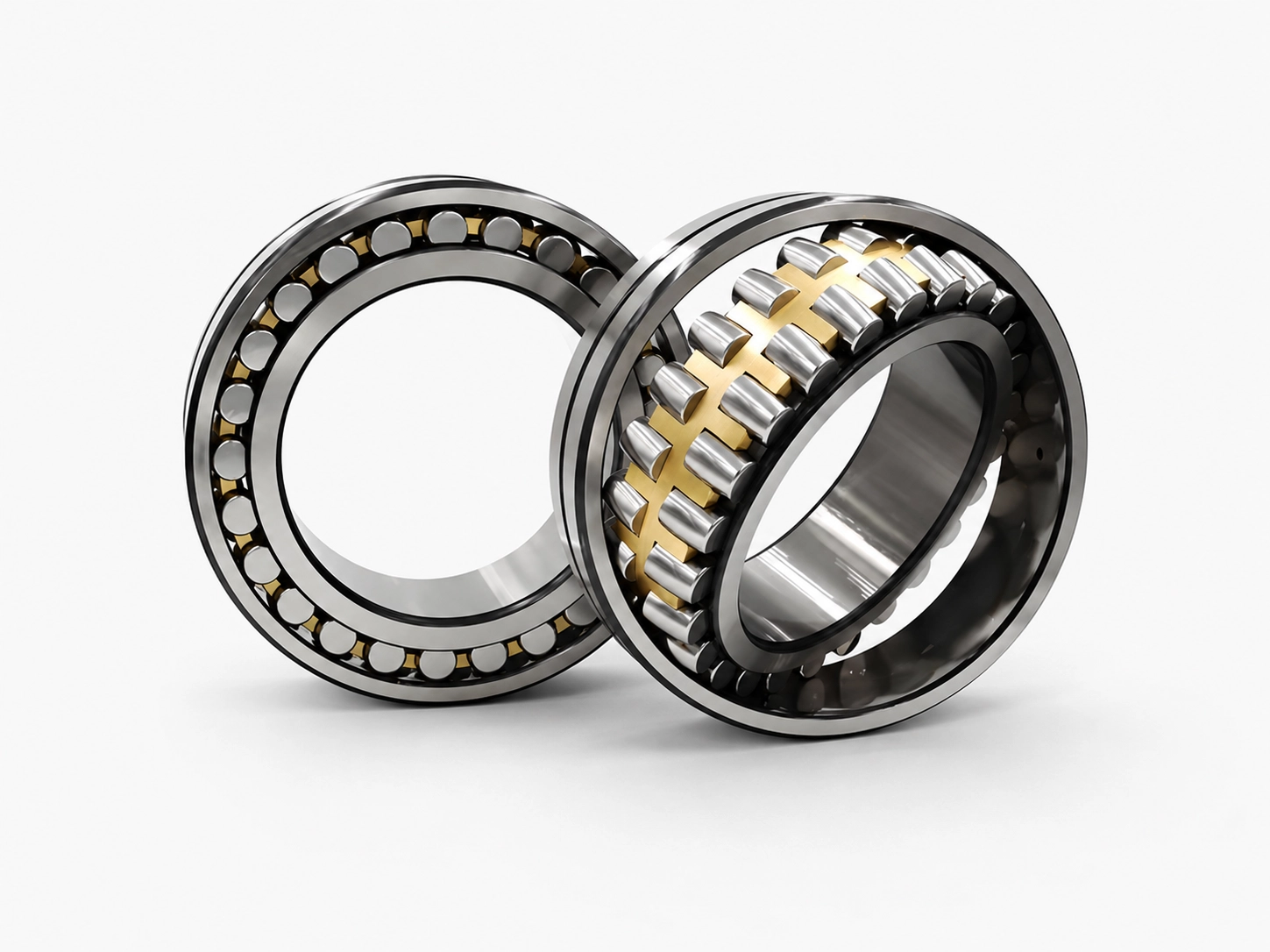

Spherical Roller Series TFL Bearing
24000 Series Spherical Roller Bearings
A low radial section combined with extra width for large shafts, heavy radial load, and restricted housing diameter.
Series: 24000
Type: SRB
Enquiry: Model + suffix
24000 Series Overview
A low radial section combined with extra width for large shafts, heavy radial load, and restricted housing diameter.
Confirm the full model, suffix, clearance, bore type, application, and quantity before ordering or assessing a replacement.
Section and Construction
A low radial section combined with extra width for large shafts, heavy radial load, and restricted housing diameter.
- Wide two-row spherical roller construction in a controlled outside-diameter envelope.
- The added width improves load-carrying geometry but increases housing-width and mounting-space requirements.
- Cylindrical/tapered bore, clearance, cage, and lubrication suffixes must be reviewed as one configuration.
Configuration Options
| Item | Series guidance | Confirm before order |
|---|---|---|
| Bore | Cylindrical or K30 tapered bore may be used according to model and manufacturer. | Shaft diameter, taper, sleeve, and full suffix. |
| Cage / internal design | Steel and brass options may exist; compare rating and speed data for the quoted design. | Cage code, load ratings, speed, temperature, and vibration. |
| Internal clearance | Large shaft fits and operating heat require a residual-clearance check. | Fits, operating temperature, speed, and measured residual clearance. |

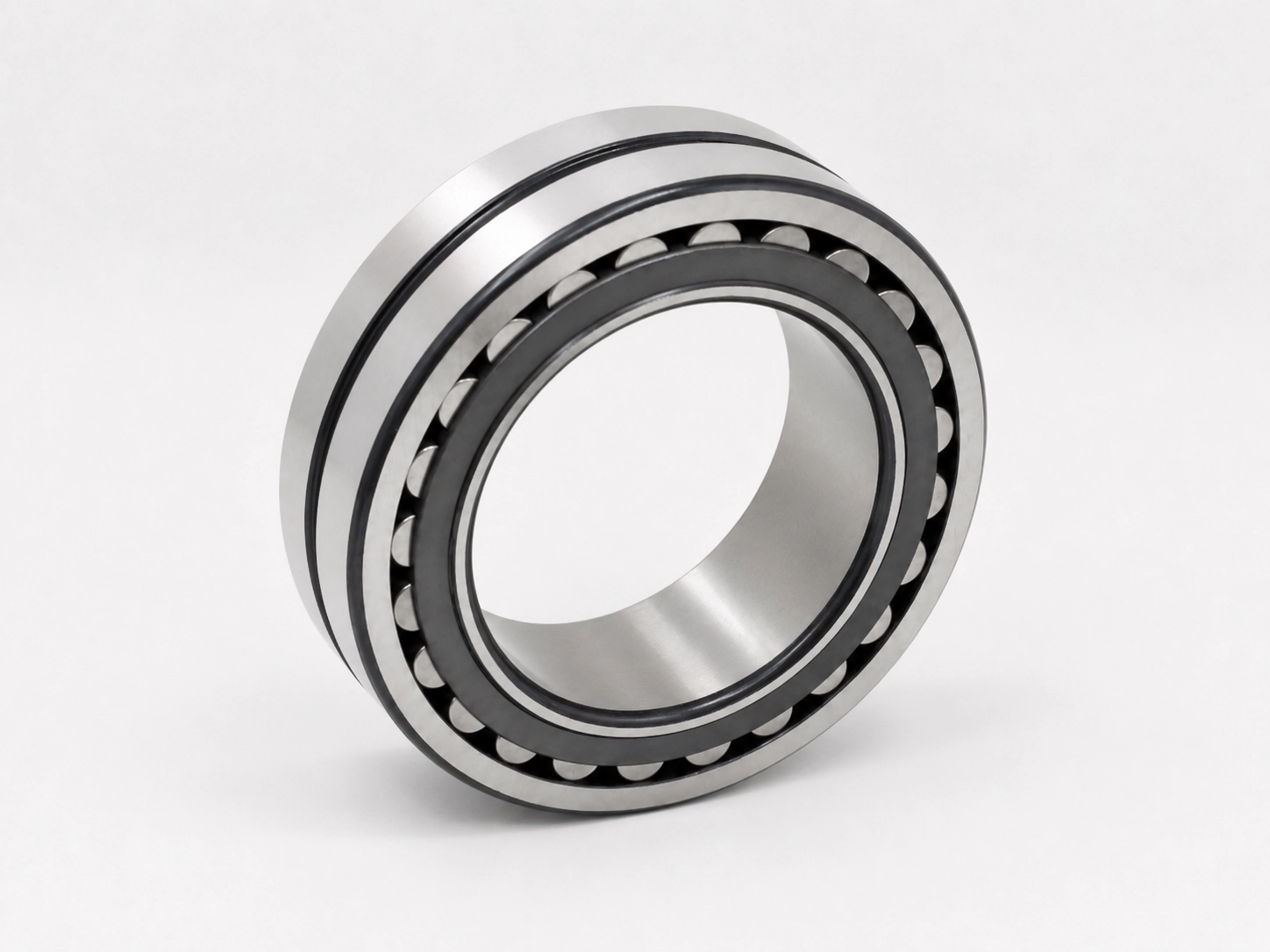

| Model range | 240xx designation family. A detailed page is published for 24024. | Complete model, suffix, marking photo, quantity, and application. |
Adjacent Series Differences
- 23000 Series
- Narrower in axial width; choose only after comparing required capacity and housing space.
- 24100 Series
- Larger radial and axial section for heavier positions where the housing permits it.
- 23900 Series
- Thinner and lighter-section option when outside-diameter space is the primary constraint.
Exact Models
Published Dimensions and Ratings
Open a 24000 Series model to compare dimensions, design references, load ratings, speed references, mass, mounting data, and calculation factors.
For another model, send the full bearing number or a clear marking photo.
Request model data →What to Confirm Before Ordering
- Provide the full bearing number, including suffixes such as K, C3, C4, CA, CC, MB, or W33.
- Confirm whether the quote is for original replacement, brand interchange, or spare availability planning.
Specification Checklist
| Item | Value to confirm | Why it matters |
|---|---|---|
| Series focus | 24000 Series | Wide low section series used for industrial replacement sourcing. |
| Common check | Bore, cage, clearance | Suffix details can change fit, load behavior, and lubrication. |
| Order detail | Model confirmation | TFL can review candidate alternatives and document requirements. |
Common Applications
- Industrial gearboxes
- Fans and blowers
- Mining equipment
- Paper and steel machinery
Request a Spherical Roller Series Quote
Send the full specification, drawing, quantity, destination, and required documents. We will confirm the selected configuration, availability, and timing in the quotation.
