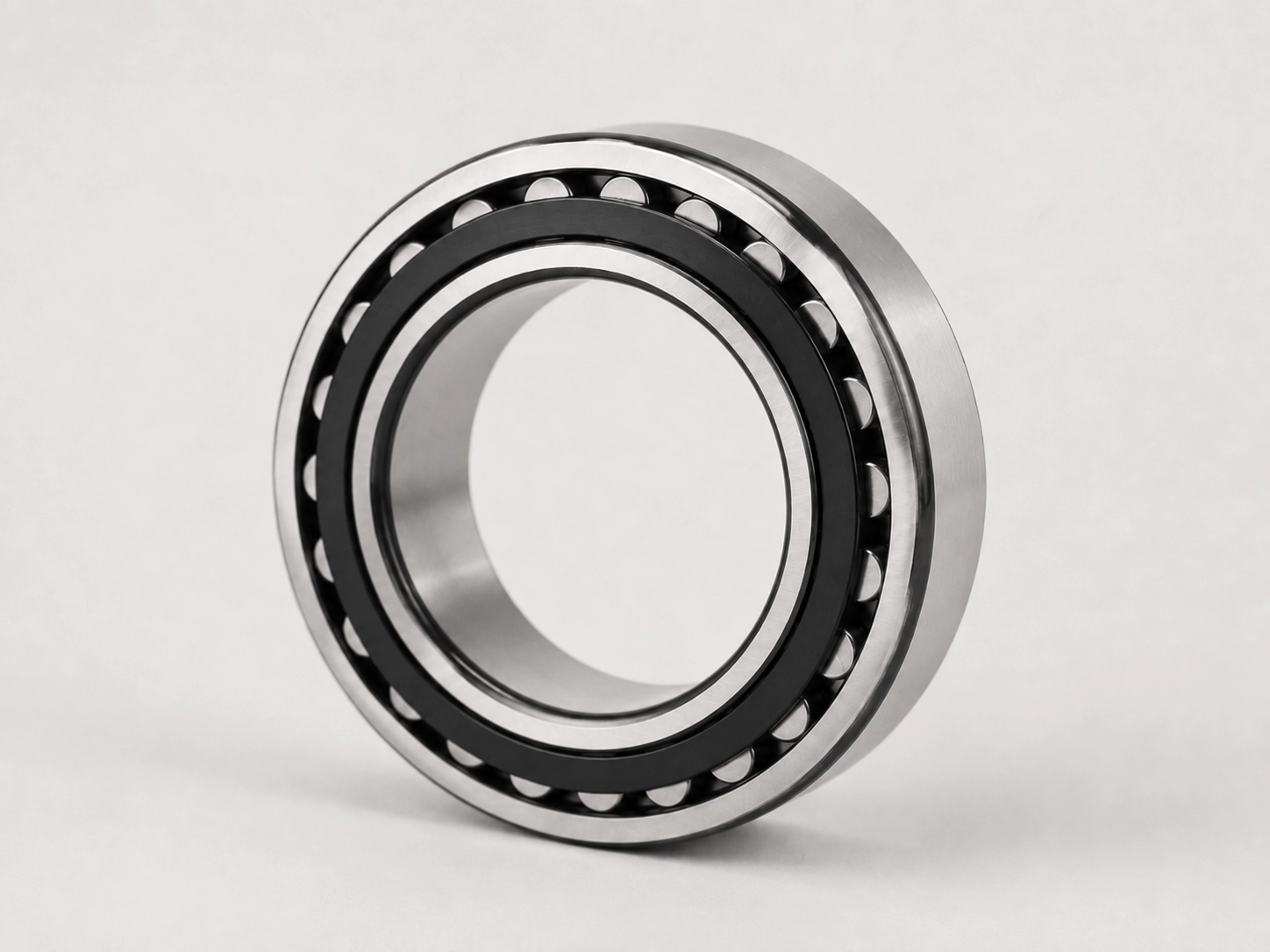

Spherical Roller Series TFL Bearing

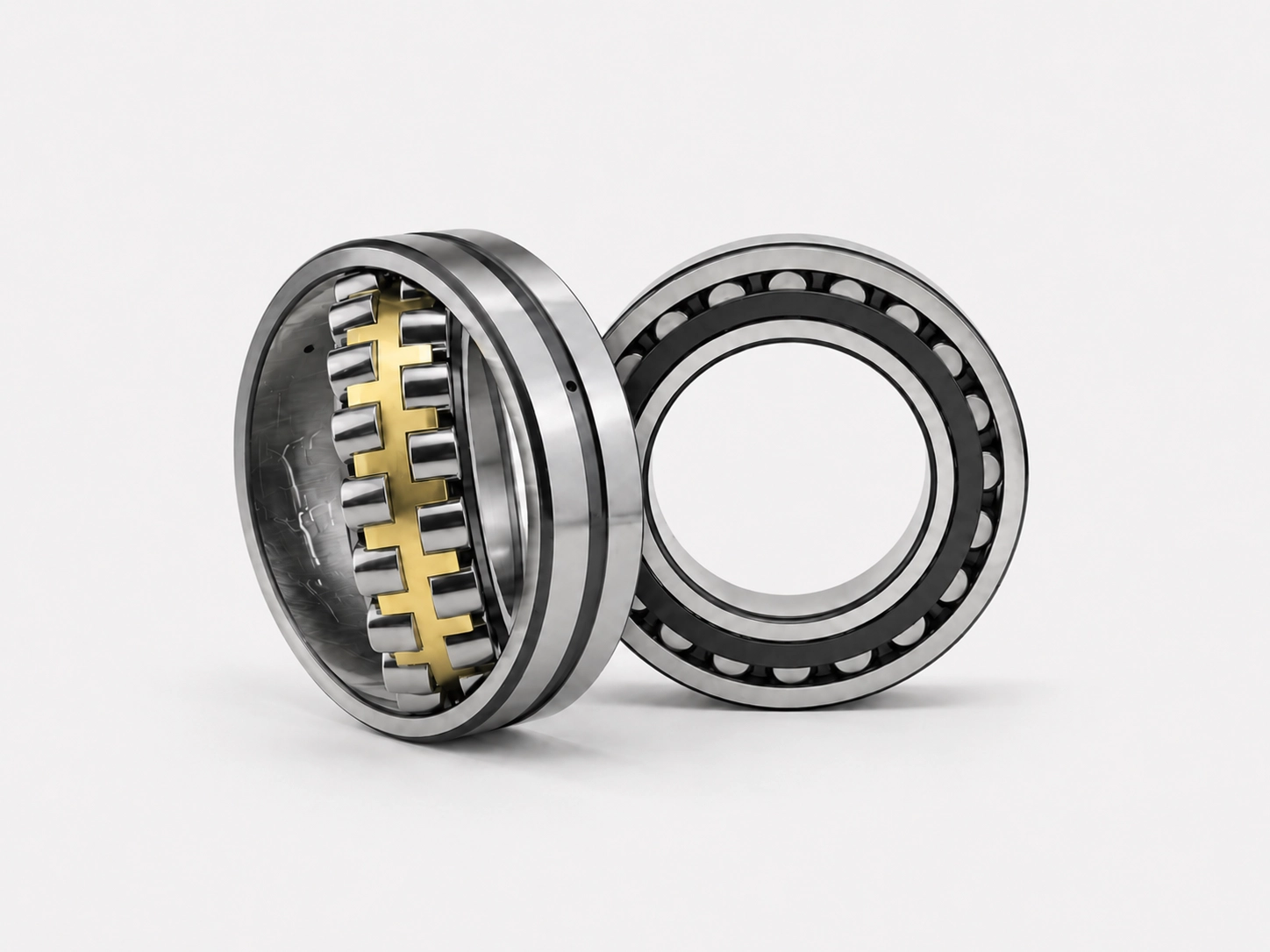

23000 Series Spherical Roller Bearings
A low radial section for large shafts where outside-diameter space is restricted and bearing width must remain controlled.
Series: 23000
Type: SRB
Enquiry: Model + suffix
23000 Series Overview
A low radial section for large shafts where outside-diameter space is restricted and bearing width must remain controlled.
Confirm the full model, suffix, clearance, bore type, application, and quantity before ordering or assessing a replacement.
Section and Construction
A low radial section for large shafts where outside-diameter space is restricted and bearing width must remain controlled.
- Two-row self-aligning roller construction in a relatively compact outside diameter.
- Well suited to arrangements that prioritize shaft diameter and radial envelope over maximum bearing width.
- Cylindrical and tapered-bore, cage, clearance, and lubrication variants must be checked by full designation.
Configuration Options
| Item | Series guidance | Confirm before order |
|---|---|---|
| Bore | Cylindrical or K tapered bore according to the exact model. | Shaft diameter, taper, sleeve, and full suffix. |
| Cage / internal design | Steel or brass designs may be available; ratings and speed references follow the selected internal design. | Cage code, load ratings, speed, temperature, and vibration. |
| Internal clearance | Fit and heat can consume internal clearance in compact housings; confirm residual clearance. | Fits, operating temperature, speed, and measured residual clearance. |
| Model range | 230xx designation family. A detailed page is published for 23024. | Complete model, suffix, marking photo, quantity, and application. |
Adjacent Series Differences
- 23100 Series
- Typically wider and able to use a larger load-carrying section at a comparable bore code.
- 24000 Series
- Keeps a low radial section but adds width for higher load capacity where axial space permits.
- 23900 Series
- An even thinner radial section for the most restricted outside-diameter envelope.
Exact Models
Published Dimensions and Ratings
Open a 23000 Series model to compare dimensions, design references, load ratings, speed references, mass, mounting data, and calculation factors.
For another model, send the full bearing number or a clear marking photo.
Request model data →What to Confirm Before Ordering
- Provide the full bearing number, including suffixes such as K, C3, C4, CA, CC, MB, or W33.
- Confirm whether the quote is for original replacement, brand interchange, or spare availability planning.
Specification Checklist
| Item | Value to confirm | Why it matters |
|---|---|---|
| Series focus | 23000 Series | Low section series used for industrial replacement sourcing. |
| Common check | Bore, cage, clearance | Suffix details can change fit, load behavior, and lubrication. |
| Order detail | Model confirmation | TFL can review candidate alternatives and document requirements. |
Common Applications
- Industrial gearboxes
- Fans and blowers
- Mining equipment
- Paper and steel machinery
Request a Spherical Roller Series Quote
Send the full specification, drawing, quantity, destination, and required documents. We will confirm the selected configuration, availability, and timing in the quotation.
