23200 Series Spherical Roller Bearings

23200 Series Overview

An extra-wide SRB section that increases load-carrying geometry within a moderate outside-diameter envelope.

Confirm the full model, suffix, clearance, bore type, application, and quantity before ordering or assessing a replacement.

Section and Construction

An extra-wide SRB section that increases load-carrying geometry within a moderate outside-diameter envelope.

• Wide two-row roller geometry for heavy radial load, axial load, and normal misalignment.
• The added width requires careful checks of housing space, shaft shoulders, fillets, and mounting access.
• Open, tapered-bore, clearance, cage, and relubrication features depend on the complete suffix.

Configuration Options

Item	Series guidance	Confirm before order
Bore	Cylindrical or K tapered bore depending on size and manufacturer.	Shaft diameter, taper, sleeve, and full suffix.
Cage / internal design	Steel or machined-brass configurations may be offered; keep design and ratings together.	Cage code, load ratings, speed, temperature, and vibration.
Internal clearance	Heavy fits, high temperature, and shock duty can change the required clearance class.	Fits, operating temperature, speed, and measured residual clearance.
Model range	232xx designation family. A detailed page is published for 23220.	Complete model, suffix, marking photo, quantity, and application.

Typical Equipment

• Heavy process machinery
• Crushers
• Steel and paper mills
• Large industrial gearboxes

Adjacent Series Differences

22200 Series

Usually narrower at a comparable radial envelope; verify width and load ratings.

23100 Series

Less width where axial space is limited; compare capacity and shoulder geometry.

22300 Series

Uses a larger radial section in many comparable bore codes; housing constraints often decide the choice.

Exact Models

Published Dimensions and Ratings

Open a 23200 Series model to compare dimensions, design references, load ratings, speed references, mass, mounting data, and calculation factors.

1 published model

Model 23220

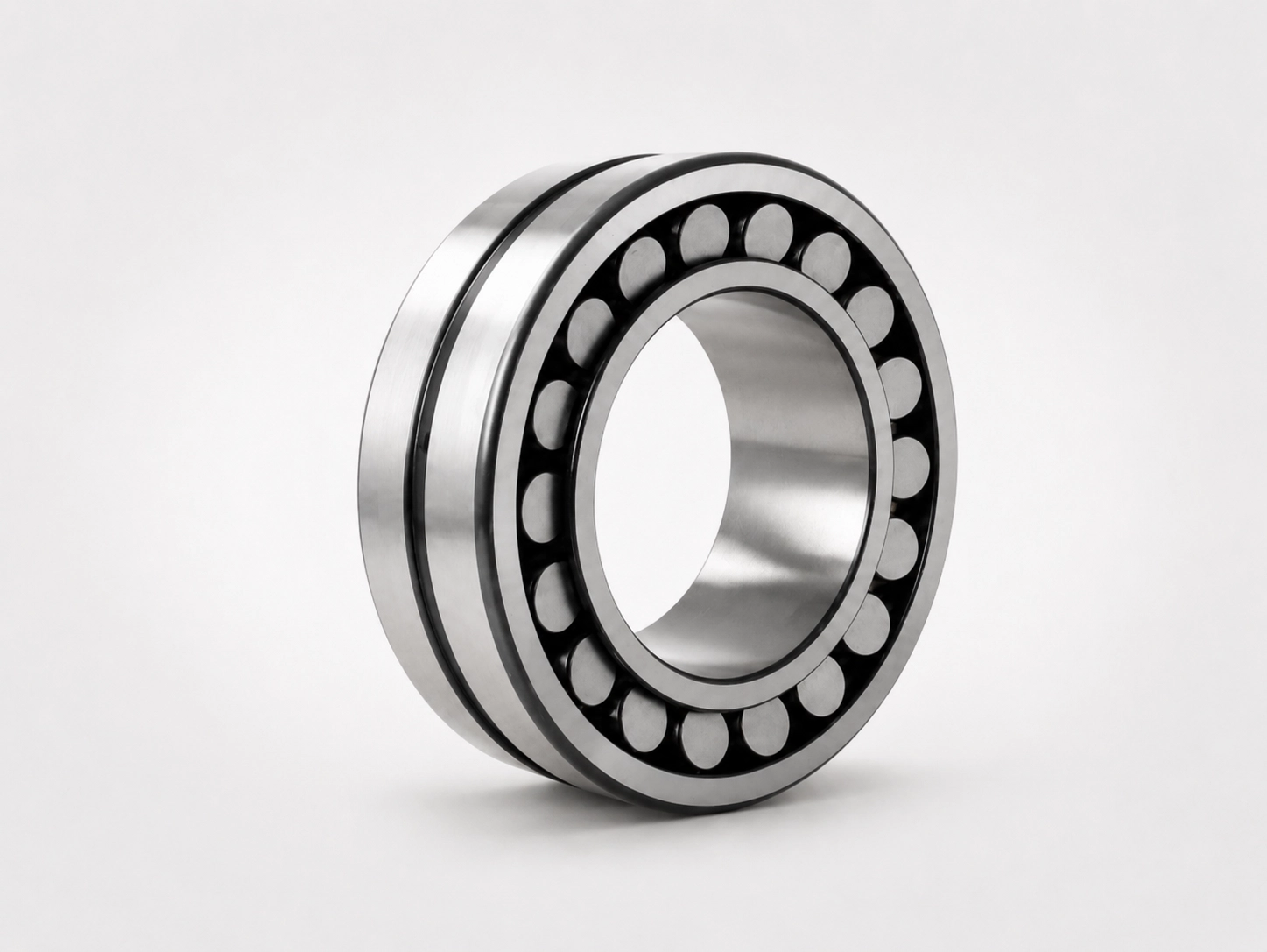

23220 Bearing

100 × 180 × 60.3 mm

Design references: EJ / EM

View dimensions and ratings →

For another model, send the full bearing number or a clear marking photo.

Request model data →

What to Confirm Before Ordering

• Provide the full bearing number, including suffixes such as K, C3, C4, CA, CC, MB, or W33.
• Confirm whether the quote is for original replacement, brand interchange, or spare availability planning.

Specification Checklist

Common Applications

• Industrial gearboxes
• Fans and blowers
• Mining equipment
• Paper and steel machinery
